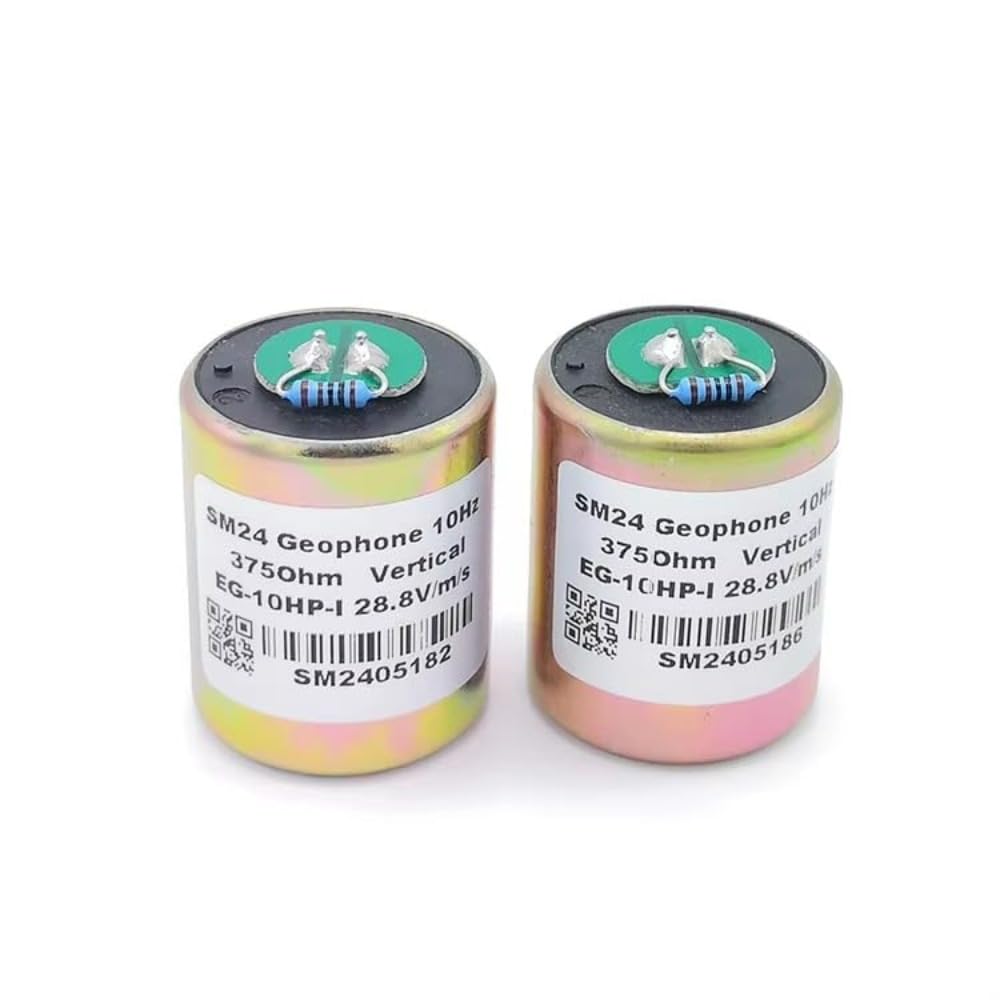

High Precision 10Hz Vertical Geophone SM 24 Seismic Geophone Sensor Element Sensor

SM24 geophone element 10Hz Vertical The high-precision geophone has advanced design, high false frequency and excellent anti-interference. The tolerance of each parameter is controlled within ±2.5%, the distortion is less than ≤0.1%, the performance is stable, the accuracy is high, and the signal is high. The collection is rich and accurate, and is suitable for all kinds of accurate seismic exploration. All parts are processed by precision machining, and the production process is mature and stable. The SM-24 Geophone 10Hz is mainly used for geological seismic exploration of oil and gas fields, coal fields and geo-minerals in land, lakes and other areas with land depth and water depth of not more than 3 meters. For 2-D & 3-D seismic exploration with bandwidth from 10Hz up to 240Hz. Specification:Natural Frequency ( Hz ): 10 ± 2.5% Coil resistance(Ω): 375 ± 2.5% Open Circuit Damping: 0.25 Damping With Shunt Resistor: 0.686 + 5.0%, 0% Open Circuit Intrinsic Voltage Sensitivity( v/m/s ): 28.8 v/m/s ± 2.5% Sensitivity With Shunt Resistor ( v/m/s ): 20.9 v/m/s ± 2.5% Damping Calibration-Shunt Resistance (Ω): 1000 Harmonic distortion( % ): ＜0.1% Typical Spurious Frequency (Hz ): ＞240Hz Moving Mass ( g ): 11.0g Typical case to coil motion p-p ( mm ): 2.0mm Allowable Tilt: ≤10º Operating Temperature Range ( ℃ ): -40℃ TO +100℃ Height ( mm ): 32 Diameter ( mm ): 25.4 Weight ( g ): 74

• Highly Sensitivity: The Vibration Sensor, 10Hz Element Horizontal seismic 10Hz geophone sensor can detect and measure even the slightest vibrations with high accuracy.
• Easy to Install: The geophone 10Hz geophone sensor is easy to install and can be quickly connected to your device with no hassle.
• Versatile Usage: Our vibration sensor can be used in a variety of applications including earthquake research, civil engineering, oil exploration, and more.
• Durable Construction: Made from high-quality materials, our geophone
• Wide Compatibility: Our vibration sensor is compatible with most seismic data recorders and can be used in conjunction with other geophones for superior seismic data collection.
